QPT-1404.5-4PK
QPT 1404.5 KV4500 Brushless Motor — 4-Pack
QPT

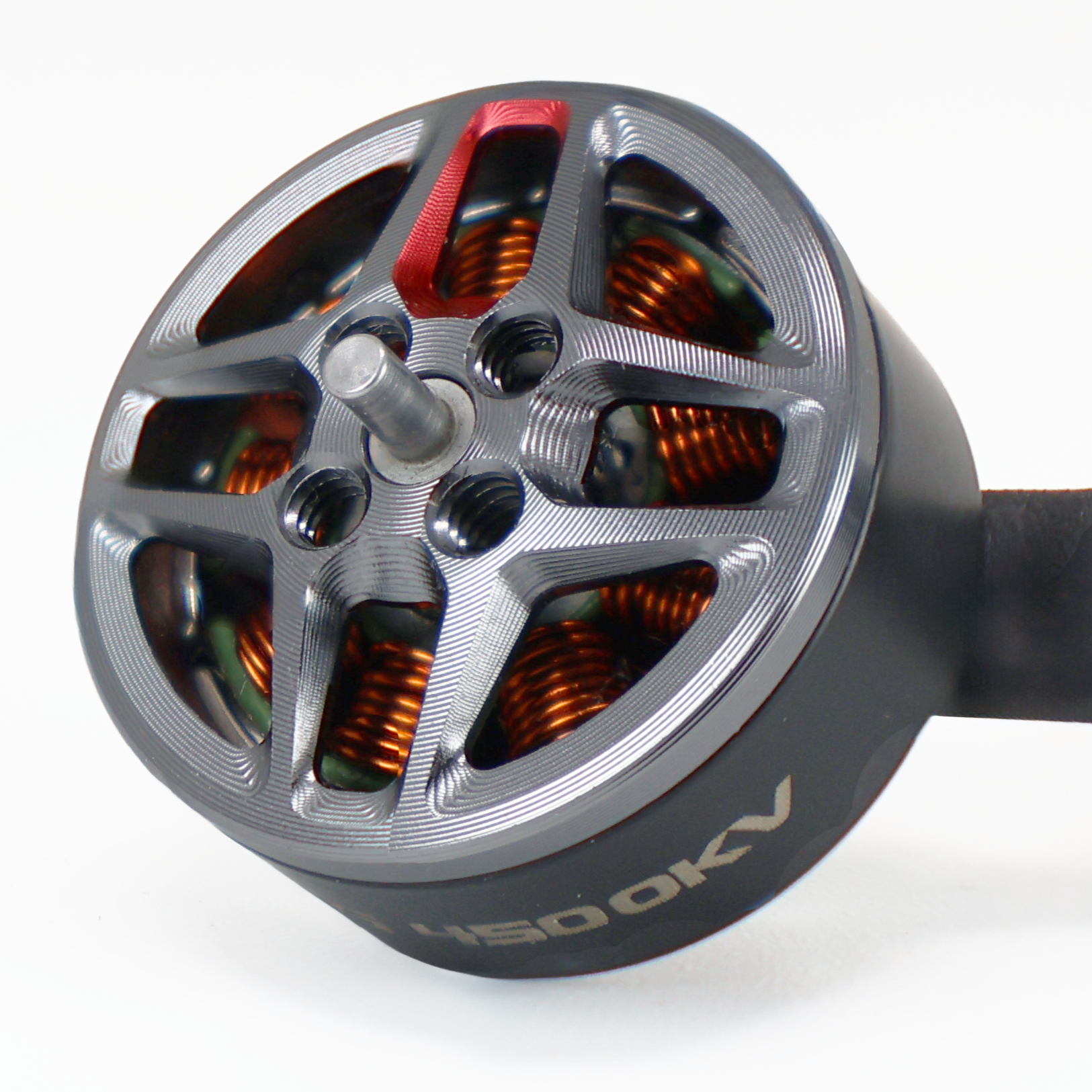

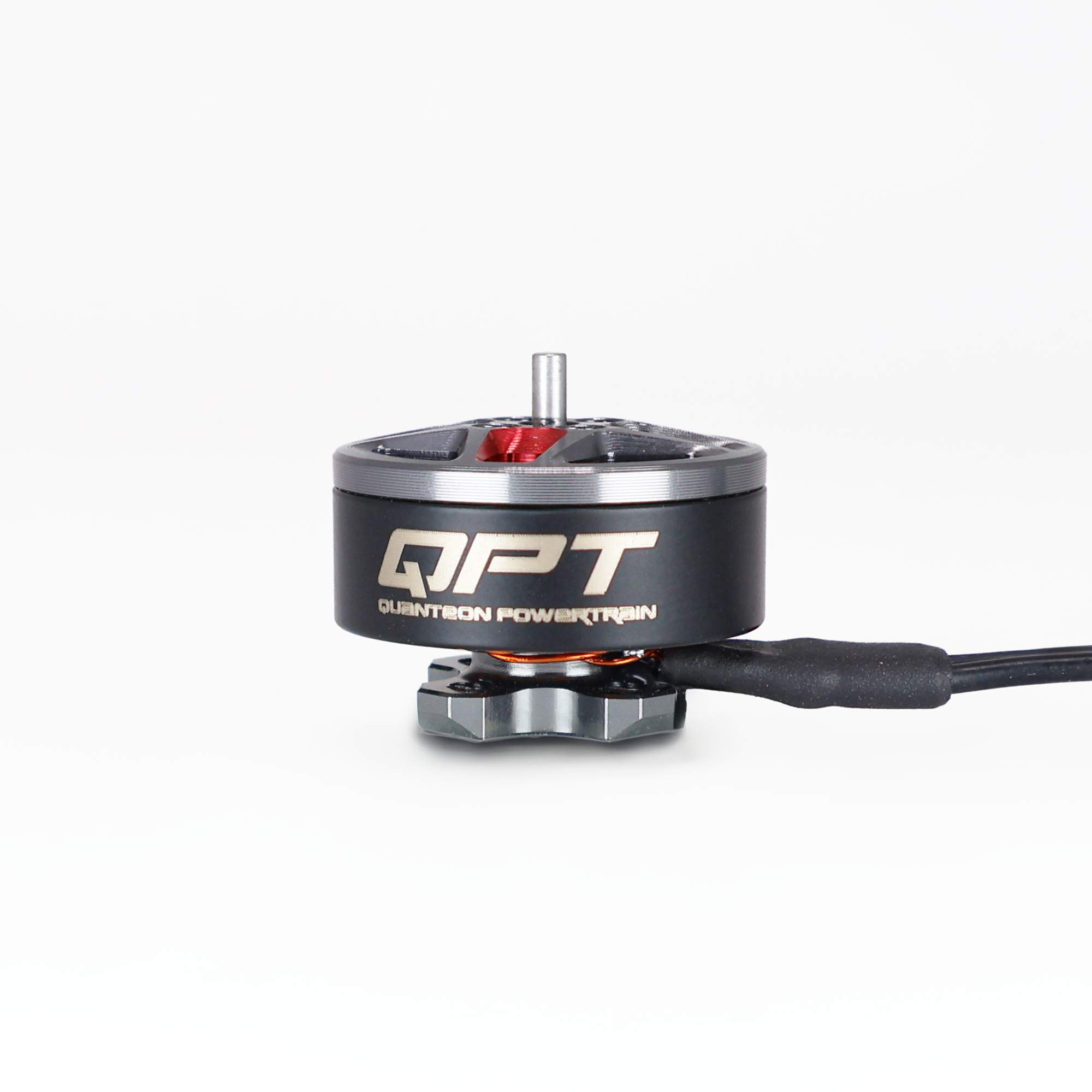

QPT 1404.5 KV4500 FPV brushless motor (stator 14 mm × 4.5 mm).
₹6,396.00 ₹5,444.29 INR
GST included · India only
Out of stock
Save ₹951.71 · ₹1,361.07 each
Shipping in India is ₹149, and free when the items are ₹1,699 or more. Shipping outside India is coming soon.
HSN 85013119
Pack
Not available to buy yet.
Sign in to tell us you want this.
Once paid, no returns except a defective item. 7-day replacement. Policy
Sign in with a confirmed email for 10% off your first order when the items are at least ₹1,000.
Overview

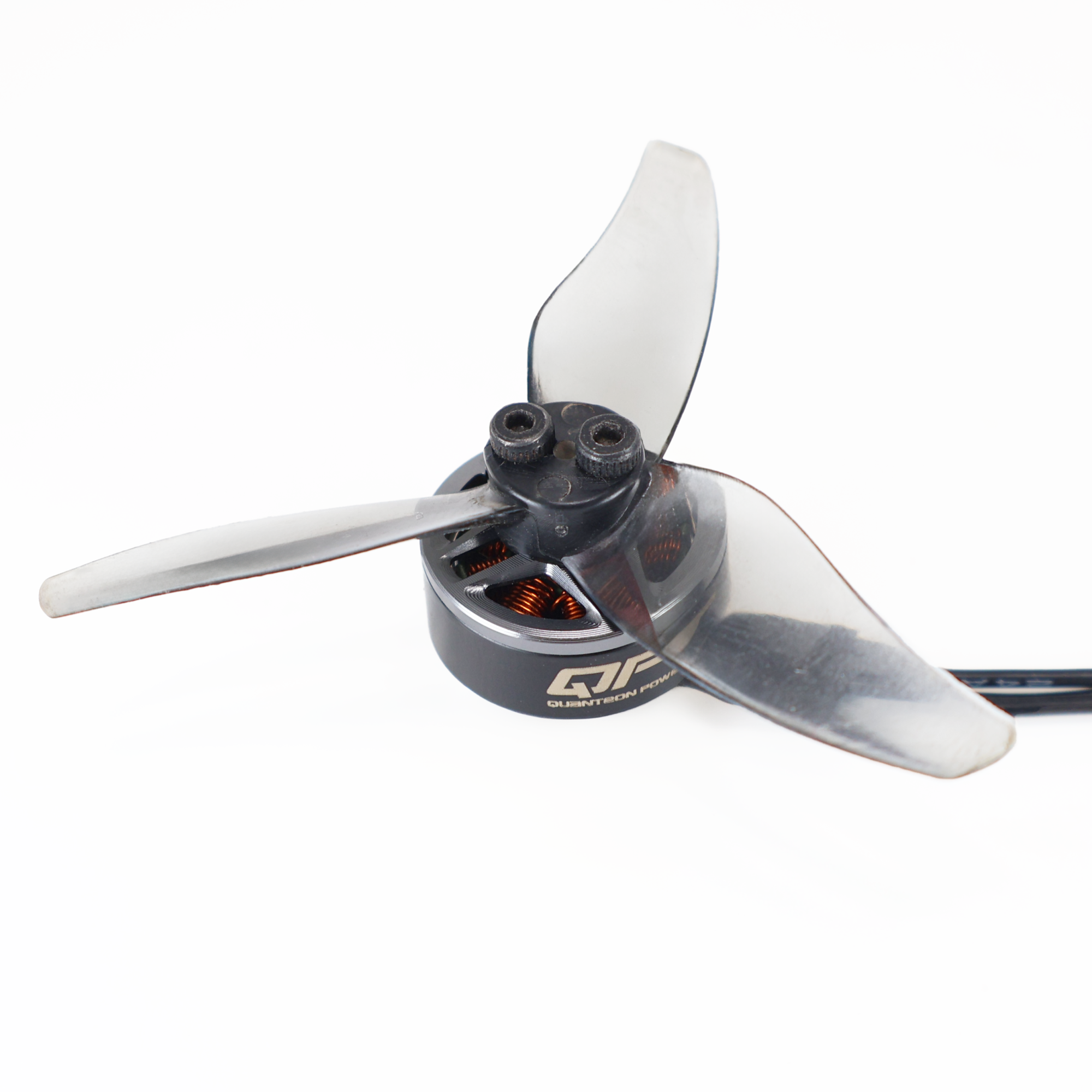

QPT 1404.5 KV4500 is for 2.5 to 4 inch propellers, for training, soccer, and freestyle flying on 3S or 4S.
The stator uses 0.15 mm silicon steel laminations and a lightweight titanium shaft. Thinner laminations reduce eddy-current heat, so more of the electrical energy becomes thrust. Weight is 10 g with the cable, and maximum thrust is 400 g.
RPM/V is 4500 kV. Internal resistance is 135 ± 3 mΩ. No-load current is 0.54 A. Maximum power is 240 W. Maximum current is 14.5 A. Motor size is ⌀18 × 16 mm.
Specifications
| KV | 4500 |
|---|---|
| Stator | 14 mm × 4.5 mm |
| Internal resistance | 135 ± 3 mΩ |
| No load current | 0.54 A |
| Max thrust | 400 g |
| Max power | 240 W |
| Max current | 14.5 A |

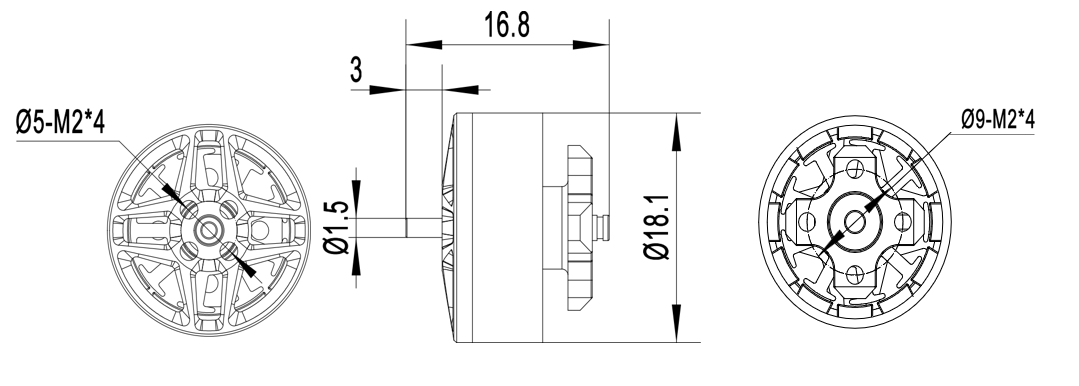

| Size | 18 × 16 mm |
| Weight (incl. cable) | 10 g |
| Brand | QPT |
